Kazakhstan International "Oil & Gas" Exhibition and Conference
30 September - 2 October 2020
Almaty, Kazakhstan

Unsurpassed accuracy - KROHNE devices for the oil and gas industry

KROHNE invites You and your colleagues At the Kazakhstan International «Oil and Gas» Exhibition on the booth №10, pavilion 10

The booth will present information on control and measuring equipment of KROHNE:

Mass flowmeter OPTIMASS 1400
• Efficient solution for accurate measurements in various applications
• Measures mass flow, density, volume, temperature, volume concentration or solids content
• High-tech double measuring tubes
• Nominal diameter 15 ... 50 mm
• Operating temperature from -40 to + 130 ° С
• Working pressure up to 10 MPa

OPTIMASS1300 1400 EGM 800x800 416c1733d8

Vortex flowmeter OPTISWIRL 4070
• Nominal diameter 15 ... 300 mm
• Built-in temperature compensation and optional pressure
• Operating temperature from -40 to + 240 ° С
• All devices in 2-wire version
• Twin version for multi-product pipelines
• Production of KRONE-Automatika LLC (Russia)
• Reduced delivery times

OPTISWIRL4070 F 800x800 4edbe6930e

Radar level meter OPTIWAVE 7300
• Measurement frequency: 24 ... 26 GHz
• Measuring range: up to 80 m
• Accuracy, up to 10 m: ± 3 mm
• Relative error, more than 10 m: ± 0,03%
• Operating pressure: up to 10 MPa
• Operating temperature: -50 ... + 200 ° С
• Quick connection system allows you to remove the converter under operating conditions
• Easy navigation and intuitive interface in Russian

OPTIWAVE7300

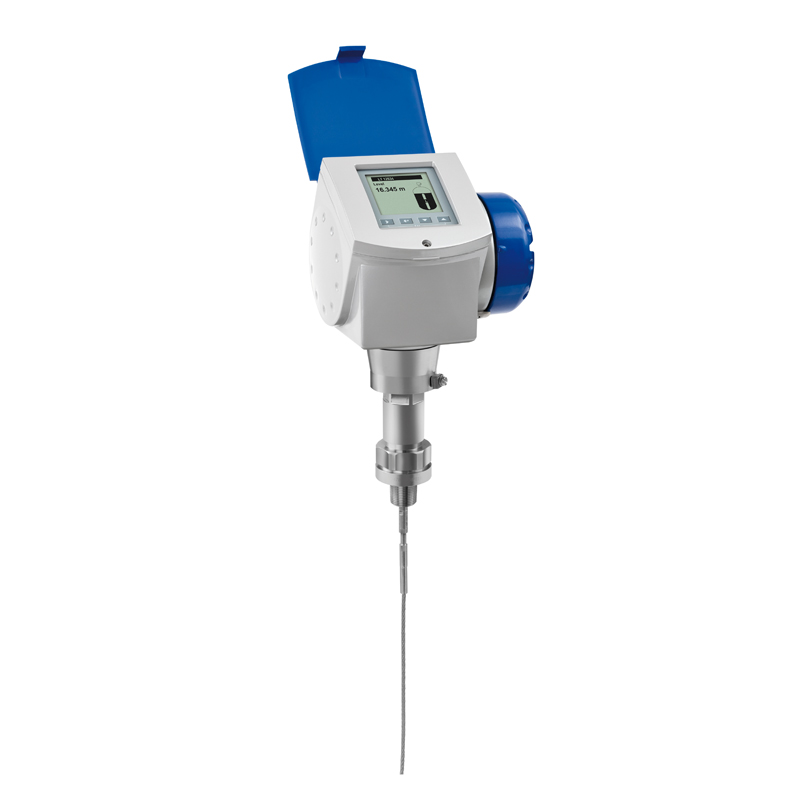

Reflex radar level meter (TDR) OPTIFLEX 1300
• Measurement frequency: 2 GHz
• Measuring range: up to 35 m
• Accuracy, up to 10 m: ± 3 mm
• Relative error, more than 10 m: ± 0,03%
• Operating temperature: - 50 ... + 300 С
• Operating pressure: up to 30 MPa
• Phase section measurement capability
• Quick connection system allows you to remove the converter under operating conditions
• The converter can be installed up to 100 m from the sensor
• Easy commissioning thanks to the quick start program with numerous functions
• Easy navigation and intuitive interface in Russian

OPTIFLEX1300

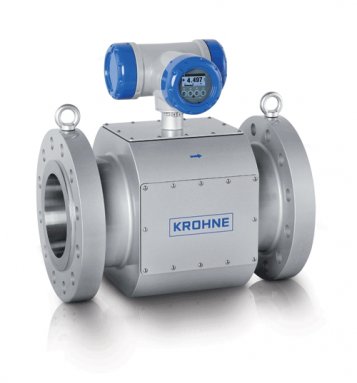

Ultrasonic flowmeter ALTOSONIC V 12
• 12-beam flowmeter for custody transfer
• Nominal diameter: 100 ... 1 600 mm
• Relative measurement error 0.2 (for calibration), 0.1% (for calibration and linearization)
• Reproducibility 0.1%
• Operating temperature -20 ... + 70 C
• Operating pressure, not more than: 45 MPa
• Explosion-proof design, availability of permits

ALTOSONIC V12 357x383

Ultrasonic flowmeter OPTISONIC 3400
• Liquid measuring device
• Reliable flow measurement regardless of density and electrical conductivity of the product
• Relative error ± 0.3%
• Full cross-section of the measuring section of the flowmeter
• Viscosity of the product, not more than 1 000 cSt
• Advanced signal converter - support for HART® 7, Foundation Fieldbus, Profibus PA, Modbus (NAMUR)

OPTISONIC3400

Radar level meter OPTIWAVE 7300
• Measurement frequency: 24 ... 26 GHz
• Measuring range: up to 80 m
• Accuracy, up to 10 m: ± 3 mm
• Relative error, more than 10 m: ± 0,03%
• Working pressure: up to 4 MPa
• Operating temperature: -50 ... + 200 ° C
• Quick connection system allows you to remove the converter under operating conditions
• Easy commissioning thanks to the quick start program with numerous functions
• Easy to navigate and intuitive interface

OPTIWAVE7300

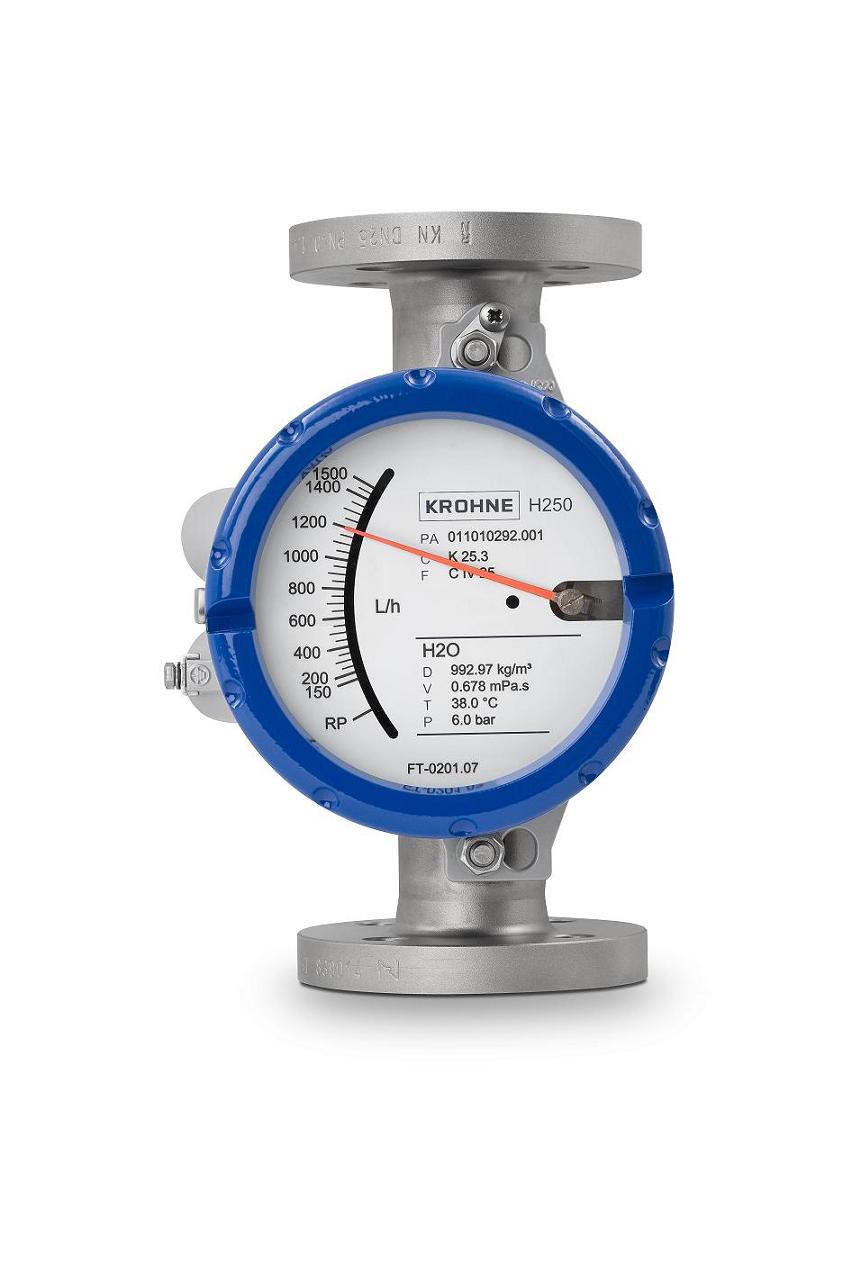

Variable area flowmeter Н250М40
• Measurement of the flow rate of pure gases and liquids in technological processes
• Accuracy class: 1.6
• Nominal diameter: 10 ... 150 mm
• Operating pressure of the medium to be measured: up to 40 MPa (higher pressure on request) • Operating temperature of the medium to be measured: -200 ... + 300 ° C
• General industrial (non-explosion-proof) and explosion-proof design (Ex d or Ex ia)
• Analog (4 ... 20 mA with HART 7) and digital output signals (Profibus PA and others)
• Arrow indication in the place of installation, which does not require an additional power source • Optional extended dynamic range up to 100: 1 is available
• Any mounting options are possible
• Modular design of the indicator, allowing easy expansion of its functionality

H250M40

Level switch OPTISWITCH 5200
• Robust vibration fork, high abrasion resistance
• High degree of reproducibility of the switching point
• Continuous self-diagnostics of the frequency of vibration, corrosion and scrap of the piezoelement cable
• Measurement is independent of product properties, such as viscosity, dielectric constant or electrical conductivity
• Not sensitive to sticking (foam), pressure and temperature fluctuations, and external vibrations • Probe length up to 6000 mm

OPTISWITCH5200

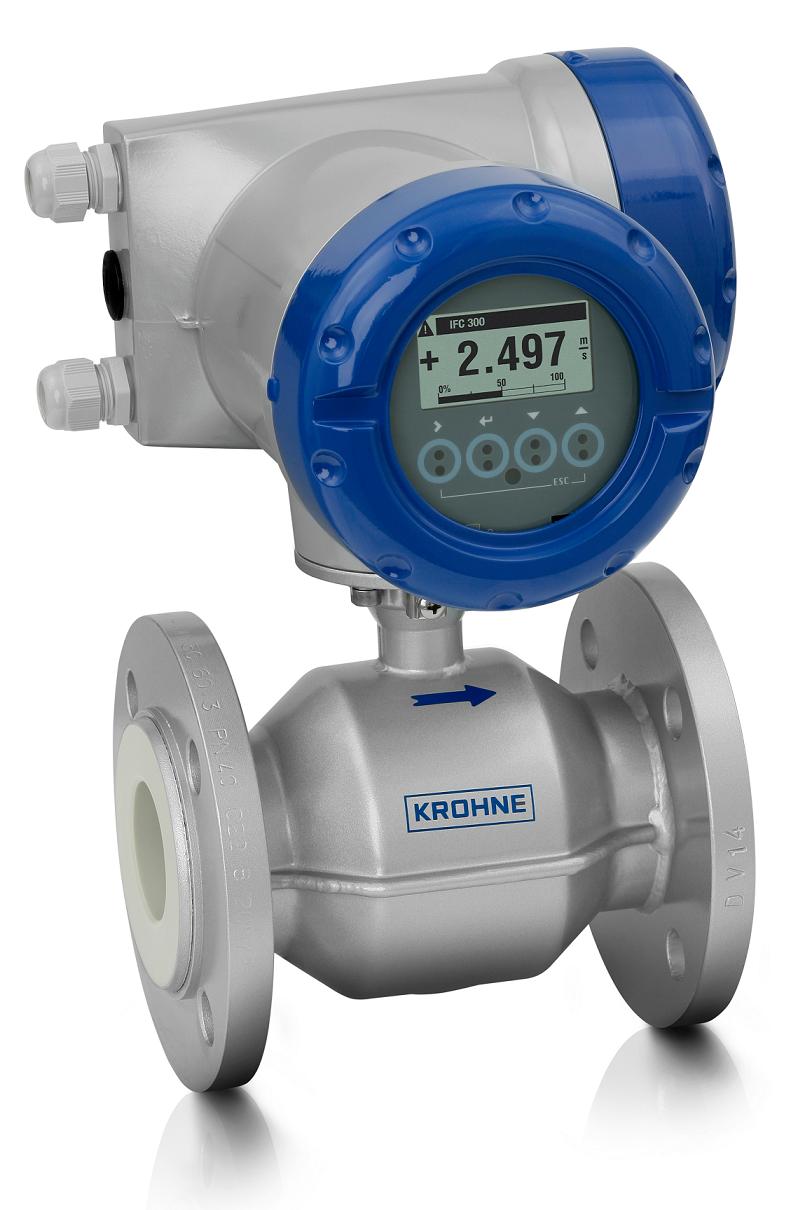

Electromagnetic flowmeter OPTIFLUX 2100
• Nominal diameter: 2.5 ... 3000 mm
• Operating pressure, up to 4 MPa (optional higher)
• Operating temperature: -40 ... + 120 ° C
• Accuracy of measurement: from ± 0,3%
• Signals: Current, pulse
• Protocols: HART® 7, Foundation Fieldbus, Profibus PA, DP, Modbus
• Allowable solids content up to 35%

OPTIFLUX2000

Introducing the new production lines of 2017:

Ultrasonic flowmeter OPTISONIC 4400

• OPTISONIC 4400 ultrasonic two-beam ultrasonic flowmeter for high temperature and high pressure applications
• Advanced version of UFM 530 HT
• Extended temperature range -45 ... + 600 ° C instead of -25 ... 500 ° C
• Amalgam acoustic sensors instead of rigid sensors:
- Measuring the consumption of products with a higher viscosity, piezoelectric module with the possibility of replacement;
- Version of flowmeter for high pressure applications up to 49 MPa at 20 ° C

OPTISONIC4400

Ultrasonic flowmeter ALTOSONIC 5
• Relative error: ± 0.10 (depending on the version of the instrument)
• Medium temperature: - from -40 to +250 ° C (depending on the version of the device) - from -200 to +120 ° C (for low-temperature version of the device)
• Ambient temperature: -55 to +65 ° C • Viscosity: 0.1 to 380 cSt
• 7-beam flowmeter for commercial accounting
• No restrictions on the Reynolds number
• Absence of movable and protruding parts
• Built-in gas detection detection
• Suitable for all flow modes

ALTOSONIC 5 357x357

KROHNE is one of the largest manufacturer and supplier of metrological equipment, which has distinguished itself from the point of view of reliability, accuracy of measurements and reproducibility. The largest production enterprises of KROHNE are located in Germany, Holland, Great Britain, France, America, Brazil. Also, manufacture of KROHNE devices is arranged in Russia as well - at KROHNE Automatika LLC, Samara. All equipment manufactured by the company meets strict quality standards, all equipment is certified.

We will be pleased to answer your questions, help to select the necessary equipment, and also provide you with technical support at all stages of the work.
